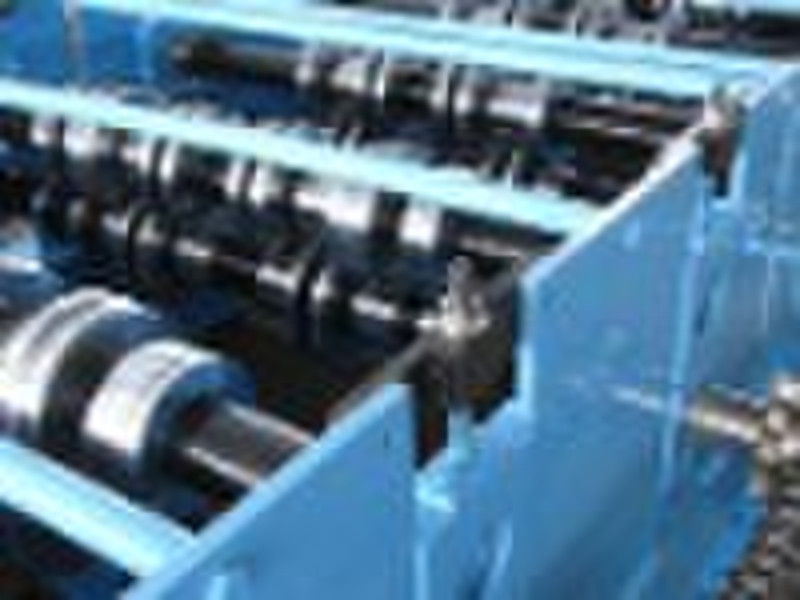

Decking Panel Forming Machine

Technical ParametersMaterial Spec Thickness of Coil Sheet Main Motor Power Forming Speed Hydraulic Station Power Quantity of Stands Hydraulic Pressure Controlling System Index Error of Length Total Weight VoltageGalvanized steel sheet, colour sheet0.7-1.5mm 11kw*2 12-15m/min 5.5kw according profile 10 12Mpa Panasonic PLC 10m±2mm according profile 380V 3 phase 50Hz or to the buyer's requirement Standard Equipment of MachinePassive uncoiler Guiding unit Roll forming machine Cutting unit Hydraulic station PLC control cabinet Supporter table Security cover 1pcs 1set1set 1set 1set1pcs 2pcs 1set Technical process: Passive uncoil → feed with guide → roll forming → cut to length → output with support table
